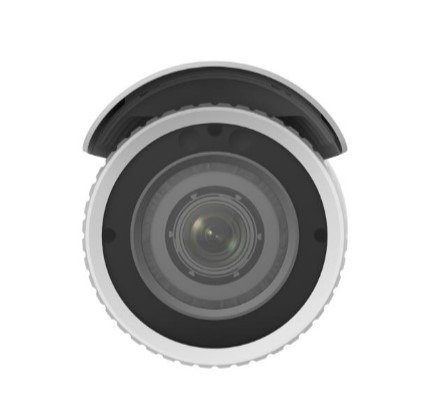

DS-2CD1643G0-I(Z)

4 MP Varifocal Bullet Network Camera

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Up to 256 GB SD card slot for storage
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range

رمز المنتج: MG-DS-2CD1643G0-I(Z)

شحن سريع وأمن

بياناتك محمية دائماً

تسوق أمن معنا

بياناتك محمية دائماً

السعر الأصلي هو: 5,500 EGP.السعر الحالي هو: 4,600 EGP.

مقارنة

0 الأشخاص الذين يشاهدون هذا المنتج الآن!

التسليم السريع

سوف يقوم احد مندوبى الشحن بالتسليم إلى العنوان المحدد

الشحن يصلك فى خلال

ايام 2-3

طرق الدفع :

- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Wide Dynamic Range120 dB
- Day & Night
  IR Cut Filter
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°
- Lens
- Lens Type
  Varifocal lens, motor-driven lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°
- Lens Mount
  Ø14
- Iris TypeFixed
- ApertureF1.6
- Illuminator
- IR Wavelength850 nm
- IR Range
  Up to 50 m
- Video
- Main Stream
  50 Hz: 20 fps (2560 × 1440)

  25 fps (1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1440)

  30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio Compression-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate-S: 8 kHz/16 kHz
- Environment Noise Filtering-S: Yes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night Switch
  Auto, Schedule, Day, Night
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
- Audio
  -S:

  1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium

  1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm
  -S: 1 input,1 output, max. 12 VDC, 30 mA
- Reset KeyYes
- Event
- Basic EventMotion detection, video tampering alarm, exception
- LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture
- General
- Power
  12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.36 A to 0.23 A, max. 12.9 W
- Camera MaterialMetal
- Camera DimensionØ105 mm × 244.4 mm (Ø4.1" × 9.6")
- Package Dimension315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
- Camera WeightApprox. 1035 g (2.3 lb.)
- With Package WeightApprox. 1550 g (3.4 lb.)
- Storage Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
  English, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMC
  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2016);

  KC (KN 32: 2015, KN 35: 2015)
- Safety
  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment
  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)
- Electrical Safety ProtectionIP67 (IEC 60529-2013)
