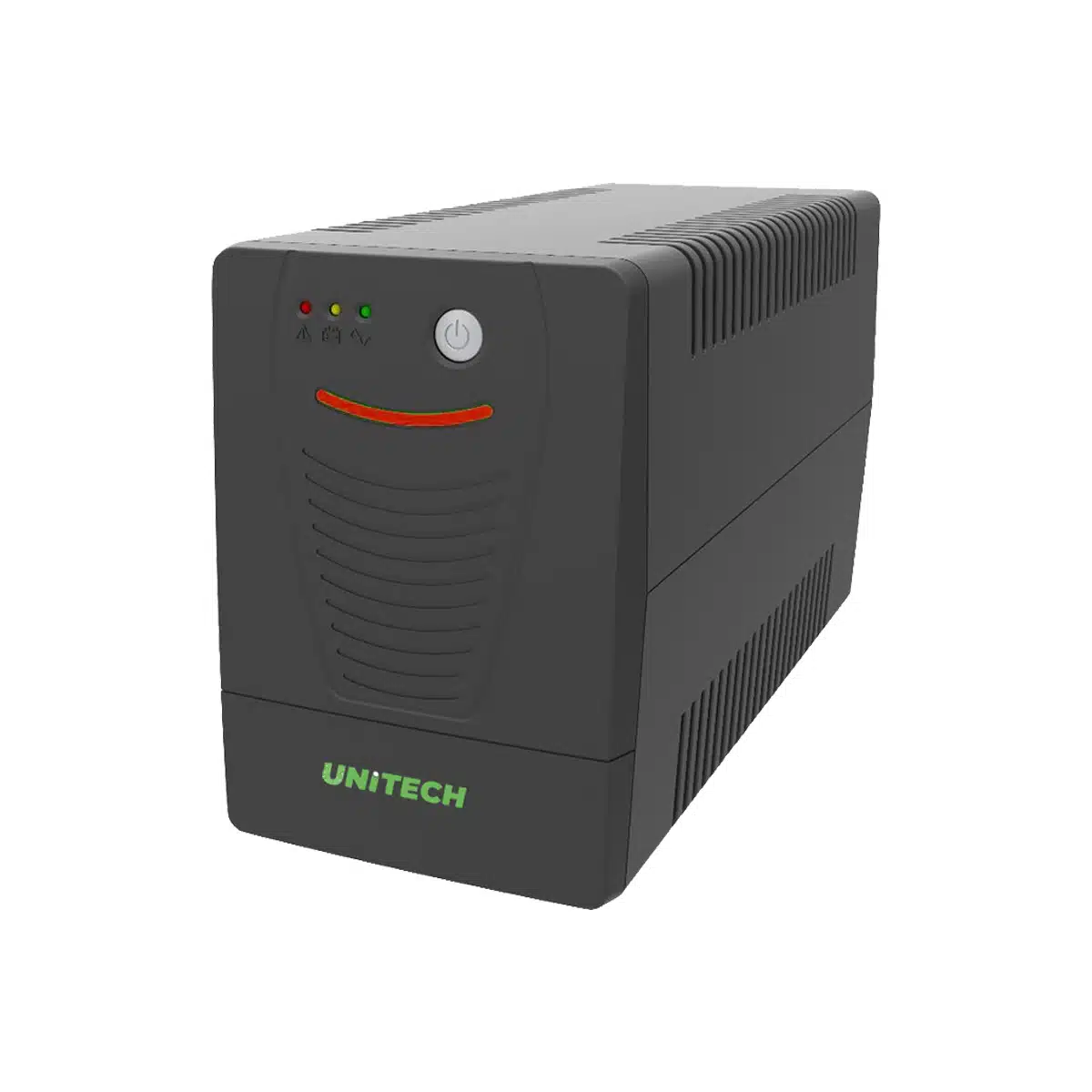

UNiTECH UPS ASG800VA /480W Line Interactive UPS

Micro 800VA/480W Line-Interactive Simulated Sinewave Tower UPS 1x12V/9AH BatteryGeneral Features
AVR boost and buck
Cold start function
Smart RS-232/USB interface for power management
Built-in self-diagnostic function
Modem/LAN internet protection
Generator compatible(Optional)Line Interactive UPS- UA Family

رمز المنتج: MG-ASG800VA العلامة التجارية: UNiTECH

شحن سريع وأمن

بياناتك محمية دائماً

تسوق أمن معنا

بياناتك محمية دائماً

السعر الأصلي هو: 2,600 EGP.السعر الحالي هو: 2,100 EGP.

مقارنة

0 الأشخاص الذين يشاهدون هذا المنتج الآن!

التسليم السريع

سوف يقوم احد مندوبى الشحن بالتسليم إلى العنوان المحدد

الشحن يصلك فى خلال

ايام 2-3

طرق الدفع :

Features

– AVR boost and buck

– Cold start function

– Smart RS-232/USB interface for power management

– Built-in self-diagnostic function

– Generator compatible

– LED

– Fast charging capacity

– Auto charging at off mode

– Auto restart while AC is recovering

Technical Specifications

Capacity (VA/Watts): 800/480

Input:

Normal Input Voltage: 110/120 Vac or 220/230/240 Vac

Operating Voltage Range: 84-145 Vac / 162-290 Vac

Operating Frequency Range: 50/60 Hz (+/- 10%)

Output:

Output Voltage Range (Batt. Mode): Simulated Sinewave at normal voltage +/- 10%

Frequency Range (Batt. Mode): 50/60 Hz +/- 1Hz

Transfer Time: Typical 2-6 ms, 10ms max.

Battery:

Battery Type & Number: 12V / 9 Ah x 1

Typical Recharge Time: 6-8 Hours (To 90% capacity)

Protection:

Full protection: Overload and overcharge protection

Indicators:

LeD: AC Mode, Battery Mode, Battery Level, Battery Low.

Alarm:

Battery Mode: Sounding every 10 seconds

Battery Low: Sounding every seconds

Overload: Sounding every 0.5 seconds

Battery Replacement Alarm: Sounding every 2 seconds

Fault: Continuously sounding

Managment:

USB & RS-232 port (Optional): Supports Windows* 2000/2003/Xp/Vista/2008/7 Linux;Unix;MAC

Environment:

Operating Temperature: 0-40*C

Humidity Range: 0-95% (Non-condensing)

Noise Level: 40dB (1 meter from surface)

Physical

Dimension, W x D x H (mm): 101 x 298 x 142

Net Weight (kg): 4.9

Standarts

Safety: IEC/EN62040 – 1; IEC/EN60950 – 1;

EMC: IEC/EN62040 – 2; IEC61000 – 4 – 2; IEC61000 – 4 – 3; IEC61000 – 4 – 4; IEC61000 – 4 – 5; IEC61000 – 4 – 5; IEC61000 – 4 – 6; IEC61000 – 4 – 8
